Reheat Furnace Designs

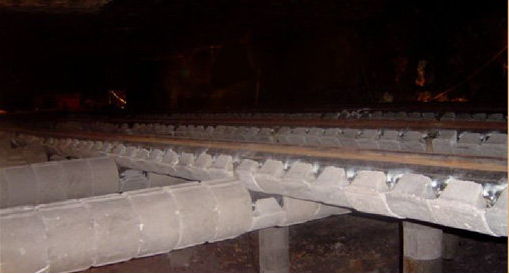

Support pipe insulation can be defined as refractory material required to cover the surface of a reheat furnace water-cooled support pipe structure to minimize the heat losses from the high furnace operating temperatures.

Image 01

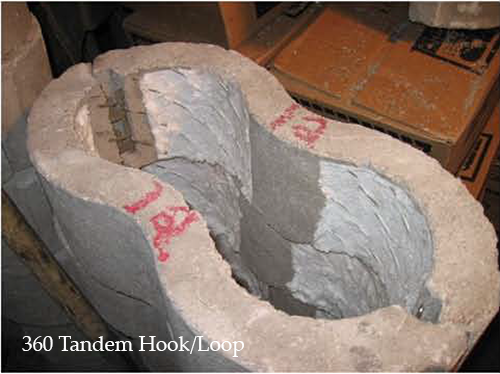

360 Tandem Hook/Loop design for vertical posts in walking beam furnaces


Image 01

Top Cap Shape is used where the application between riders or buttons allow.


Image 01

360 Hook/Loop No-Weld Design for vertical post or crossover pipe


Image 01

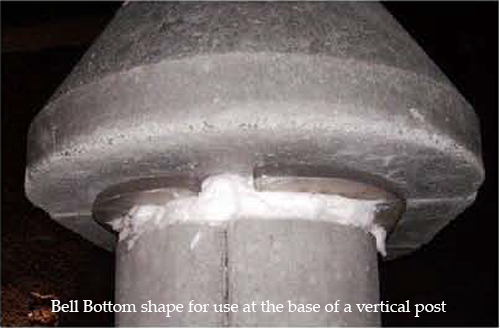

Bell Bottom shape for use at the base of a vertical post on a moving beam that covers the slot area


Image 01

No-Weld Hinged Cast Shape for base of moving post in slots


Image 01

270 Weld-On design for elbow returns and long


Image 01

Cast Shape for the return elbow in Bolt-On or Weld-On Application


Image 01

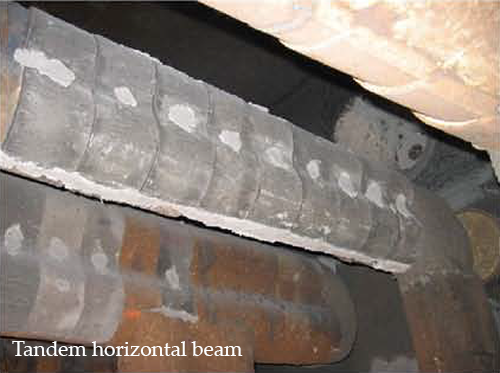

Bolt-On or Weld-On design for tandem pipes
